Exhibits This is another photo
from the Book
20 years
of Alpha Jet
in the
Belgian Air Force
by Marc Arys
Continue the Alpha Jet Tour Below
Scanned by C. Jeff
Dyrek

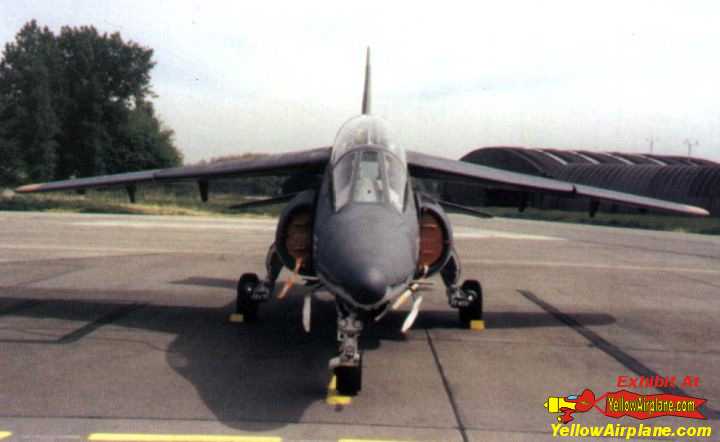

The Alpha Jet AT22
Front View
Continue the Alpha Jet Tour Below
Technical data of the Belgian Alpha Jet.
Model
1B
Engines
2 Snecma/Turbomeca Larzac
04-C5 with 1.350 kg thrust each
Wingspan
9.11 m
Length
11.84 m
Weight
6.100 kg
Max Speed
540 kts
Load Factor
+8.6 G/ -4.6 G
Range
2.775 km with external fuel tanks
Operational ceiling 45.000 ft.
Armament:
-
DEFA 533 canon 30 mm in a centerline pod under
the fuselage with 150 shells
-
7.62 mm machine gun in a centerline pod under
the fuselage
-
Various underwing loads
-
Exercise bombs MK 106
-
Retarded bombs of 250 kg
-
Bombs MK82 "Snakeye" 500 lbs
-
Bombs BLU-1CB 750 lbs
-
CLUSTER Bombs BL755 600 lbs
-
Rocks and Bomb rack SUU 2A
|
